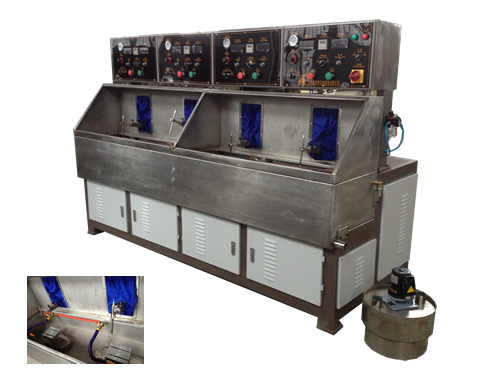

Information Name: | Supply pressure cylinder axis grinding and polishing machine |
Published: | 2013-06-08 |
Validity: | 3000 |
Specifications: | GZM15.4A |
Quantity: | 10.00 |
Price Description: | |
Detailed Product Description: | This machine is mainly used for a variety of optical glass, quartz, crystals and other materials, polishing cylinder, automatic coolant circulation, stainless steel sink, main swing, swing independent deputy frequency control system, its horizontal and vertical range of motion can be adjusted, smooth motion, no vibration, low noise. Especially for large quantities of cylindrical grinding and polishing the optical element. The main technical parameters: 1, number 4 spindle axis 2, axis distance 575 (mm) 3, Table travel 100mm 4, table reciprocating frequency of 15 to 100 beats / min (according to user needs) 5, the swing frame stroke 100mm 6, pendulum aircraft reciprocating frequency 15 to 100 beats / min (according to user needs) 7, pneumatic pressure maximum pressure 0.99MPa 8, power 3.2KW/380V 9, Dimension 2440 × 1050 × 1650 (mm) 1 0, weight about 1200kg machine Any special requirements can be based on user requirements and design, manufacturing |
